Protective Relay Quiz

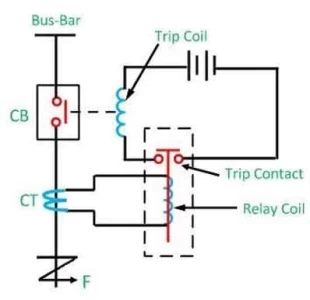

This quiz tests your knowledge of protective relays and their role in electrical power systems. Choose the best answer for each question.

Question #1:

1. What was the first type of protective relay design?

a) Interconnecting relay
b) Electromechanical relay
c) Static relay
d) Microprocessor relay

Answer: b. Electromechanical relays were the pioneers of protective relaying, utilizing electromagnetic principles with both electrical and mechanical components. They are still in use today.

Question #2:

What type of protection is most common in power distribution systems?

a) Directional
b) Overvoltage
c) Reverse power
d) Overcurrent

Answer: d. Overcurrent protection is the workhorse of power system protection, offering basic yet effective safeguard against excessive currents. Time overcurrent relays (identified by the ANSI code 51) are a common type, utilizing time delays after exceeding a specific current threshold.

Question #3:

Which ANSI code identifies a protective element that only operates when current flows in a specific direction?

a) 67
b) 59
c) 51
d) 24

Answer: a. The ANSI code 67 designates an AC directional overcurrent relay. This relay analyzes current flow direction and trips only if the current exceeds a set value and flows in the specified direction.

Question #4:

In a 67 relay setting, what does MTA stand for?

a) Motor torque angle
b) Minimum time allowance
c) Maximum torque angle
d) Mechanical trip adjustment

Answer: c. Maximum torque angle (MTA) refers to the angular displacement between the polarizing voltage and the specified current of a directional element. The MTA points towards the center of the defined direction.

Question #5:

Which power system study verifies the proper sequence of operation for upstream and downstream protective devices?

a) Coordination study
b) Short circuit study
c) Arc flash study
d) Load flow study

Answer: a. A coordination study analyzes the operating curves of protective devices (relays and circuit breakers) and equipment damage curves. It ensures that upstream devices trip before downstream devices during a fault, minimizing outage extent.

Question #6:

Which protective relay function can potentially reduce the predicted arc flash incident energy?

a) Remote operation
b) Energy-reducing maintenance switching
c) Finger-safe components
d) Phase sequence protection

Answer: b. Energy-reducing maintenance switching involves temporarily adjusting a protective device setting for faster tripping while personnel work within the arc flash boundary. This reduces the fault duration and potential arc flash severity.

Question #7:

Which relay element typically uses a minimum voltage setting and a time delay to avoid nuisance tripping?

a) Phase sequence
b) Directional
c) Undervoltage
d) Distance

Answer: c. Undervoltage protection safeguards equipment from damage caused by voltage sags. A time delay helps prevent nuisance tripping due to temporary voltage dips, while a minimum voltage setting avoids tripping during normal switching operations.

Question #8:

Why are protective relays crucial in power systems?

a) System safety
b) Equipment damage prevention
c) System selectivity
d) All of the above

Answer: d. Protective relays play a vital role in ensuring:

Safety: Prompt tripping during arc flash events protects personnel.
Equipment protection: De-energizing faulty sections prevents equipment damage.
Selectivity: Only the affected area is isolated, minimizing outage impact on healthy parts of the system.
